Equipment standard: 1. GB1408.1-2006 "Test Methods for Electrical Strength of Insulation Materials"
2. GB1408.2-2006 "Test Methods for Electrical Strength of Insulation Materials Part 2: Additional Requirements for Application of DC Voltage Test
3. GB/T1695-2005 "Determination method for power frequency breakdown voltage strength and withstand voltage of vulcanized rubber"
4. ASTM D149 "Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulation Materials at Industrial Power Supply Frequency"

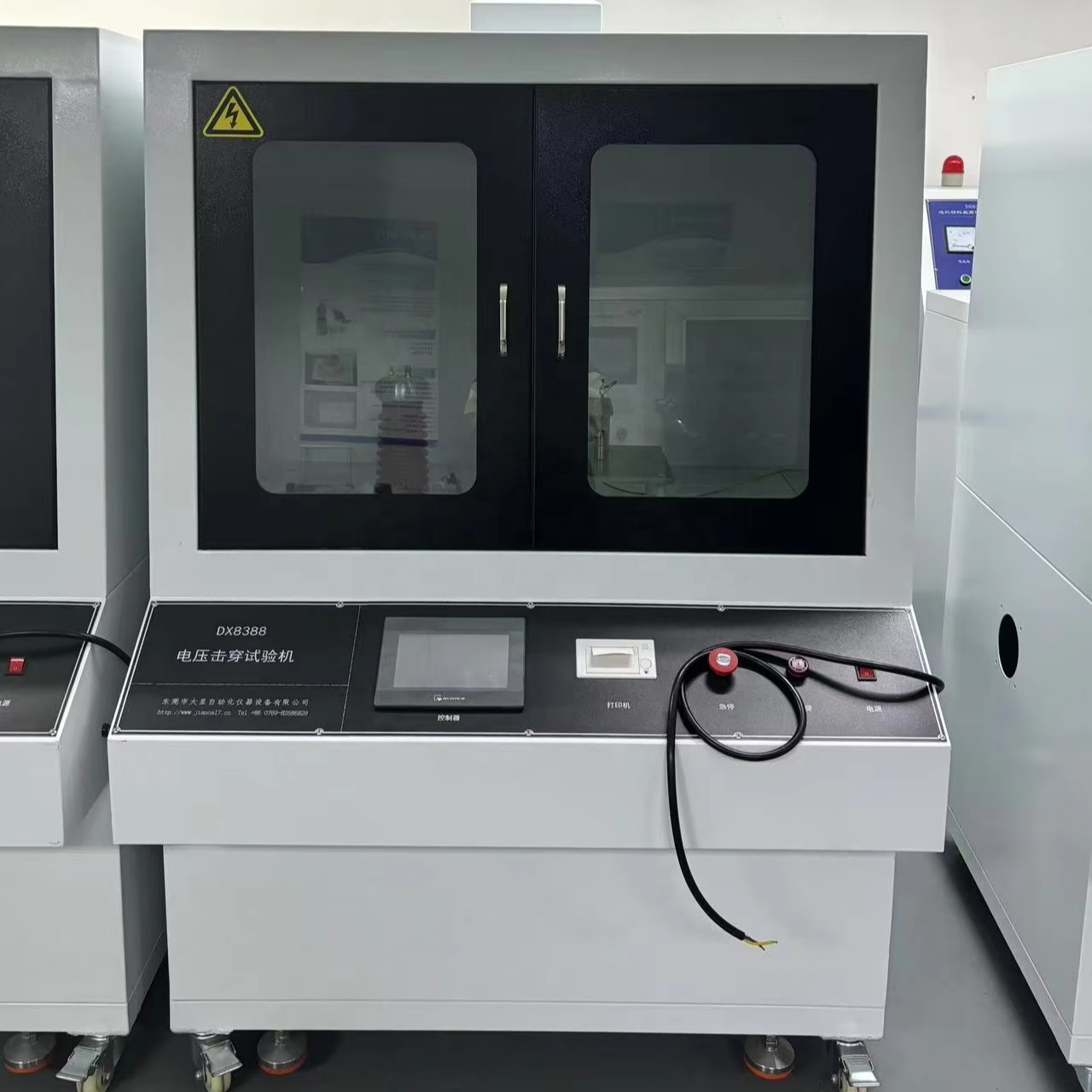

Product overview: This testing machine is suitable for measuring the breakdown strength and withstand time of solid insulation materials such as plastics, films, resins, mica, ceramics, silicone, glass, insulation paints, etc. in air or liquid media at power frequency (48-62Hz) or corresponding DC voltage.
Scope of application: Suitable for continuous and uniform voltage boosting or step-by-step voltage boosting, apply AC/DC voltage to the sample until breakdown, measure the breakdown voltage value, and calculate the breakdown strength of the sample; Using a rapid voltage boost method, raise the voltage to the specified value and maintain it for a certain period of time until the sample does not break down. Set the specified value at this time as the withstand voltage value of the sample.
Main technical parameters of the instrument:
1. Test voltage: AC 0~50 kV continuously adjustable DC 0~50 kV continuously adjustable
2. Transformer capacity: 10 KVA
3. Breakdown voltage: 0~50kV
4. Boosting speed: divided into 10 gears: 50, 100, 200, 500, 1000, 2000 (KV/S)
5. Boost speed regulation: for electrical automatic speed regulation
6. Voltage measurement accuracy: ≤ 5％
7. Leakage current selection: 1-20 mA
8. Test methods: DC test, AC test
9. Boosting method: automatic programmable boosting
10. Power frequency: 50Hz sine wave
11. Power supply: AC220V 50/60Hz
12. External dimensions: L 1400* W 1040* H 1500 mm
